Formats

In: a video with GPS inside, or a video plus a data file. Out: MP4.

Video files

File extensions it opens: .mp4 .mov .insv .360 .mkv.

GPS in the video

From these recordings MAPu reads the position and the other data on its own, without a separate file.

FormatExtension
BlackVue dashcam.mp4 .mov
Dashcam text track (Garmin, Thinkware).mp4 .mov
DJI drone / camera (data written into the video).mp4 .mov
GoPro (data in the video).mp4 .mov .360
Insta360 (data in the video).mp4 .mov .insv
Novatek dashcam (Viofo, Vantrue, Transcend …).mp4 .mov

360° recordings

From the Insta360 X6's two-lens .insv recording MAPu makes a level picture looking along the travel, with views to choose (Features → 360° recordings). Tried only with this camera; from other 360° cameras' recordings MAPu does not make a 360° picture yet.

Data files

If the camera writes no GPS, one of these files goes next to the video.

FormatExtension
DJI drone SRT caption.srt (next to the video, same name)
FIT file (Garmin / Wahoo / Coros / Suunto).fit
GPX file.gpx
NMEA 0183 log.nmea .nma .txt .log .gps (next to the video, same name)
RaceBox CSV.csv
RaceChrono CSV.csv
Registrator Viewer track (dashcam GPS, CSV).csv
TCX file (Garmin Training Center).tcx
Torque Pro log (OBD, CSV).csv
TrackAddict CSV.csv
Racelogic VBO.vbo

Output

CodecAMD (AMF)Intel (Quick Sync)NVIDIA (NVENC)On the CPU
H.264 (AVC)h264_amfh264_qsvh264_nvenclibx264
H.265 (HEVC)hevc_amfhevc_qsvhevc_nvenclibx265
AV1av1_amfav1_qsvav1_nvenclibsvtav1

At startup the program tries what the computer can do — per card, format and size — and offers only that. The card that decodes and the one that encodes can be chosen separately.

ContainerMP4
AudioCopy (original, no re-encoding), or AAC 96 / 128 / 192 / 256 / 320 kbps
In-between framesDuplicate frames (fast) · Frame blending (fast) · Motion interpolation (slow, smoothest)
DecodingAMD: D3D11VA · Intel: Quick Sync or D3D12VA · NVIDIA: NVDEC — in the formats the card decoded in the trial; the CPU does the rest

Output size

Set in the Output panel of the bar above the picture and in the Export panel; loading a layout preset does not change it.

Sourcethe video's own size (the default)
Landscape (16:9)4K UHD 3840×2160 · 1440p 2560×1440 · 1080p Full HD 1920×1080 · 720p HD 1280×720
Social (Reels, Shorts, TikTok, Instagram)Vertical 9:16 1080×1920 · Vertical 9:16 1440×2560 · Portrait 4:5 1080×1350 · Square 1:1 1080×1080
Custom sizewidth × height, even numbers, 160–8192 px per side
Encoder limitsthe CPU: 8192×8192; a graphics card’s depends on the card, and the program tries it at startup. A size the chosen encoder cannot make is flagged before the export.
The video in the frameFit · Fill · Move — when moving it, it can be resized with the mouse too
BackgroundColour (any, black by default) · Blurred — where the video does not cover the frame
Widgetson another aspect ratio they are re-laid once: each keeps to its nearest edge or to the middle

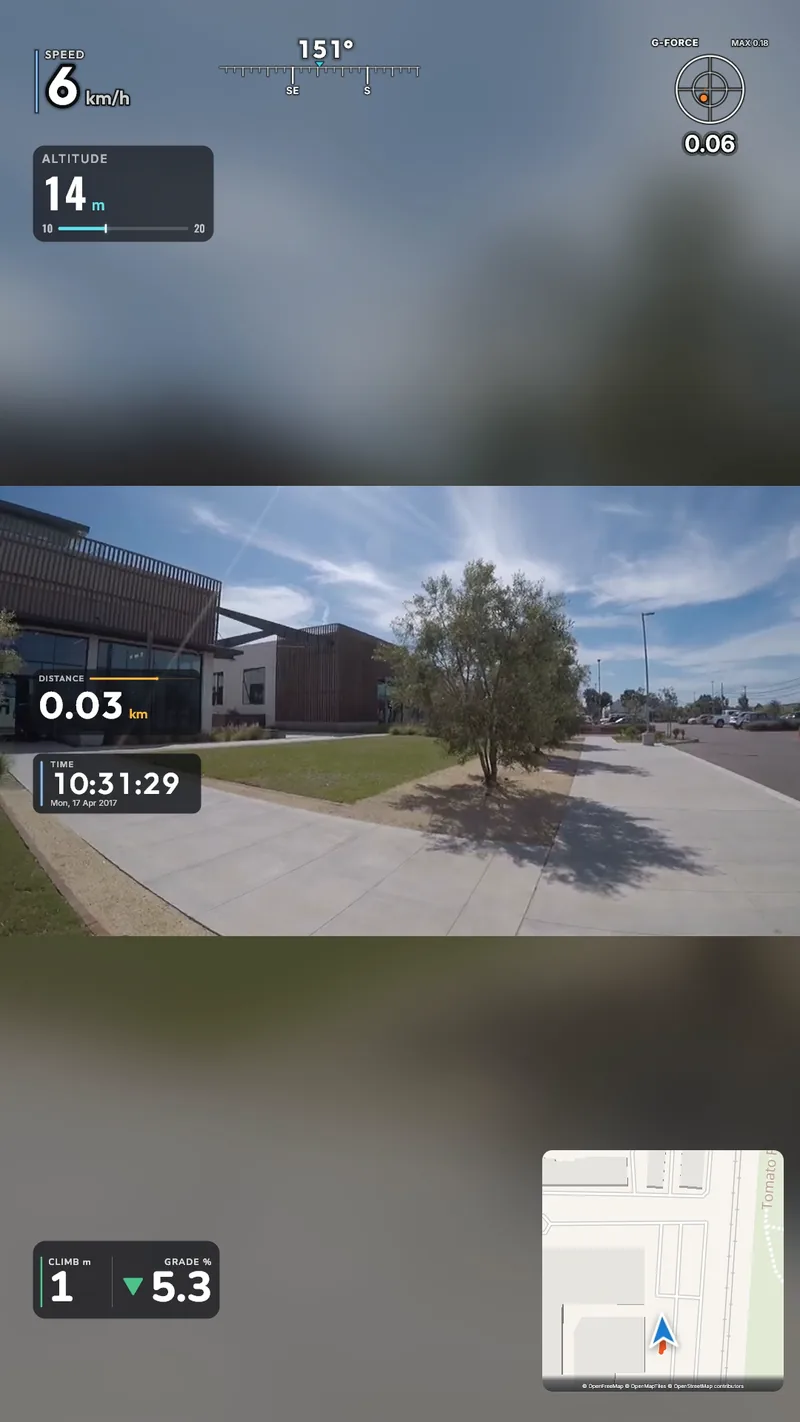

An exported vertical 9:16 frame: the landscape GoPro video whole in the middle (a building, a tree, a pavement), above and below it the same video enlarged and blurred; speed (6 km/h), altitude, a compass tape and G-force at the top, distance and clock on the video, climb and a map at the bottom.
An exported frame, vertical 9:16: the video fitted, a blurred background around it; the program re-laid the widgets for the vertical picture.
